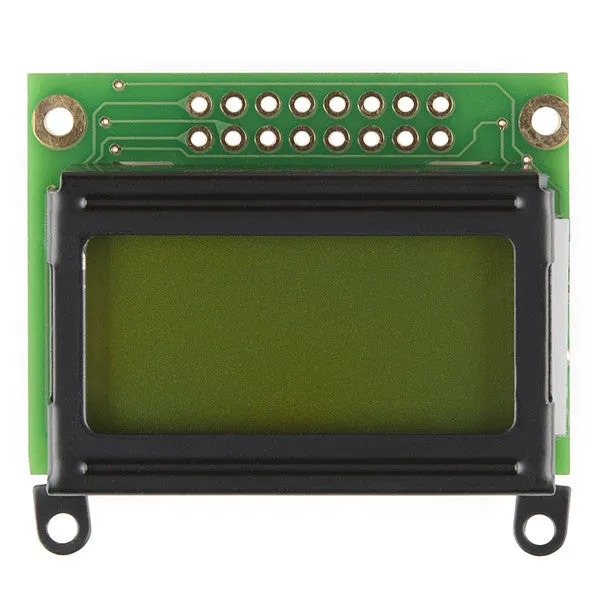

This is a basic 8 character by 2 line display with black text on green background. The screen utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Includes LED backlight.

You can use the example sketch in the Arduino IDE to get up and running in no time.

Note: This will work with our serial backpack, but it will not connect directly due to the different pin layout.

Dimensions: 1.574" x 1.411"

Documents:

• (HD44780)
